2 m
Cable lenght

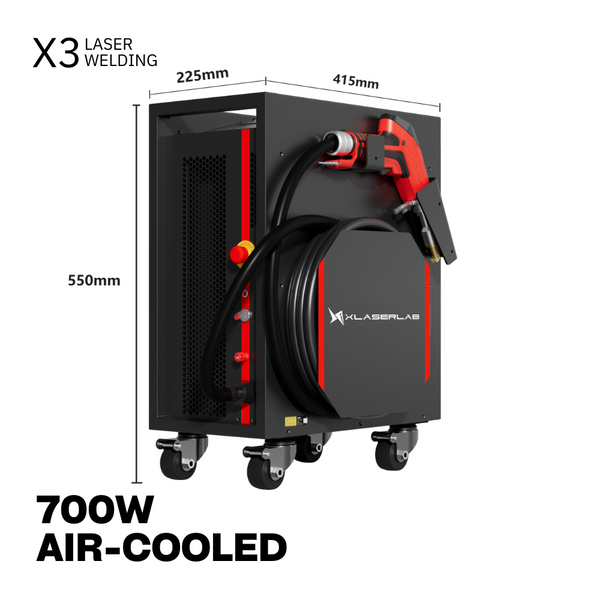

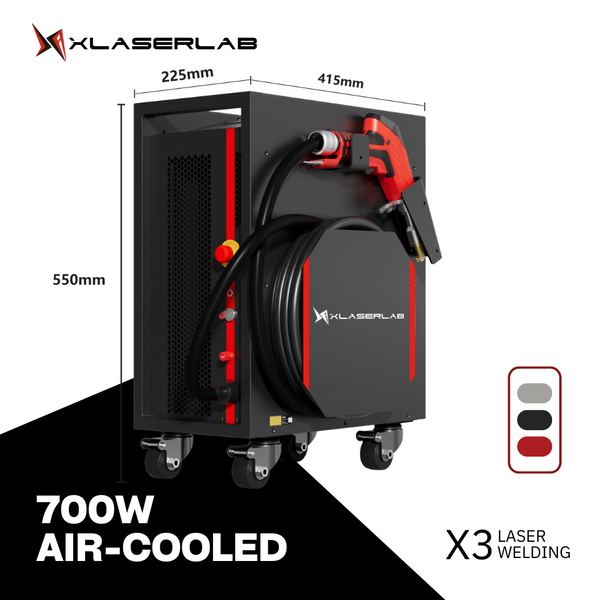

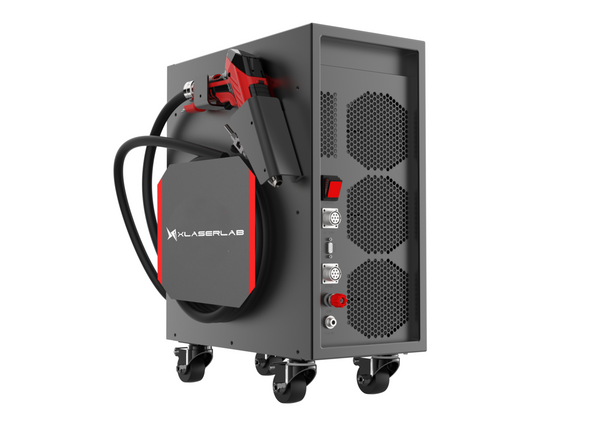

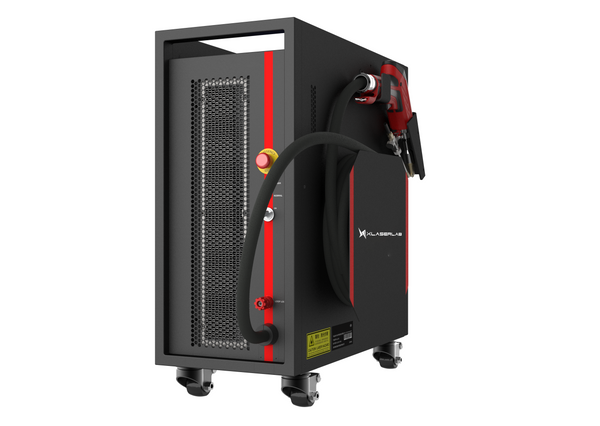

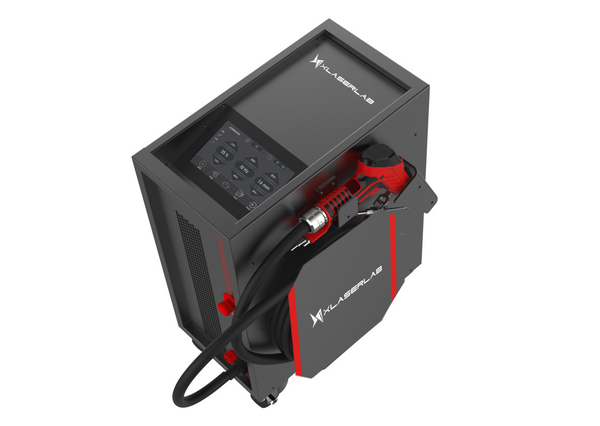

RyanPhotonics 700W handheld Air-cooled laser welding machine
Quote NowSemiconductor-based compact desktop laser welder — a powerful tool for thin-sheet welding.
Product Highlights
12 kg (26.45 lb)
Net weight
24 h
Working time
0.2-2 mm
Welding thickness
395x189x265 mm
Mechanical dimensions
-20-40°C
Working enviroment temperature
Technical Specifications
Product Model
X3
Laser Source Type
Fiber Laser
Average Power
700W
Laser Wavelength
1080±10nm
Operating Mode
Continuous/Pulse
Welding Thickness Range
0.5-3mm
Electro-optical Conversion Efficiency
35%
Total Power Consumption
2.5kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Cable Length
5m
Product Dimension
415*550*255mm
Product Weight
28kg (61.72lb)
Materials
Stainless Steel
Carbon Steel
Iron
Galvanized Sheet
Aluminium
Brass
Copper
Zinc Alloy
And More
Certificates
Product Information
Overview
Machine Series
X3
Peak Power
1100w
Pulse width
1-50 ms
Output Power
0.3 mW
Gable Length
2m
Power Input
220v
Power Dissipation
2500 W
Power Control
1-100 %
Duty Cycle
1-50 %
Learn More

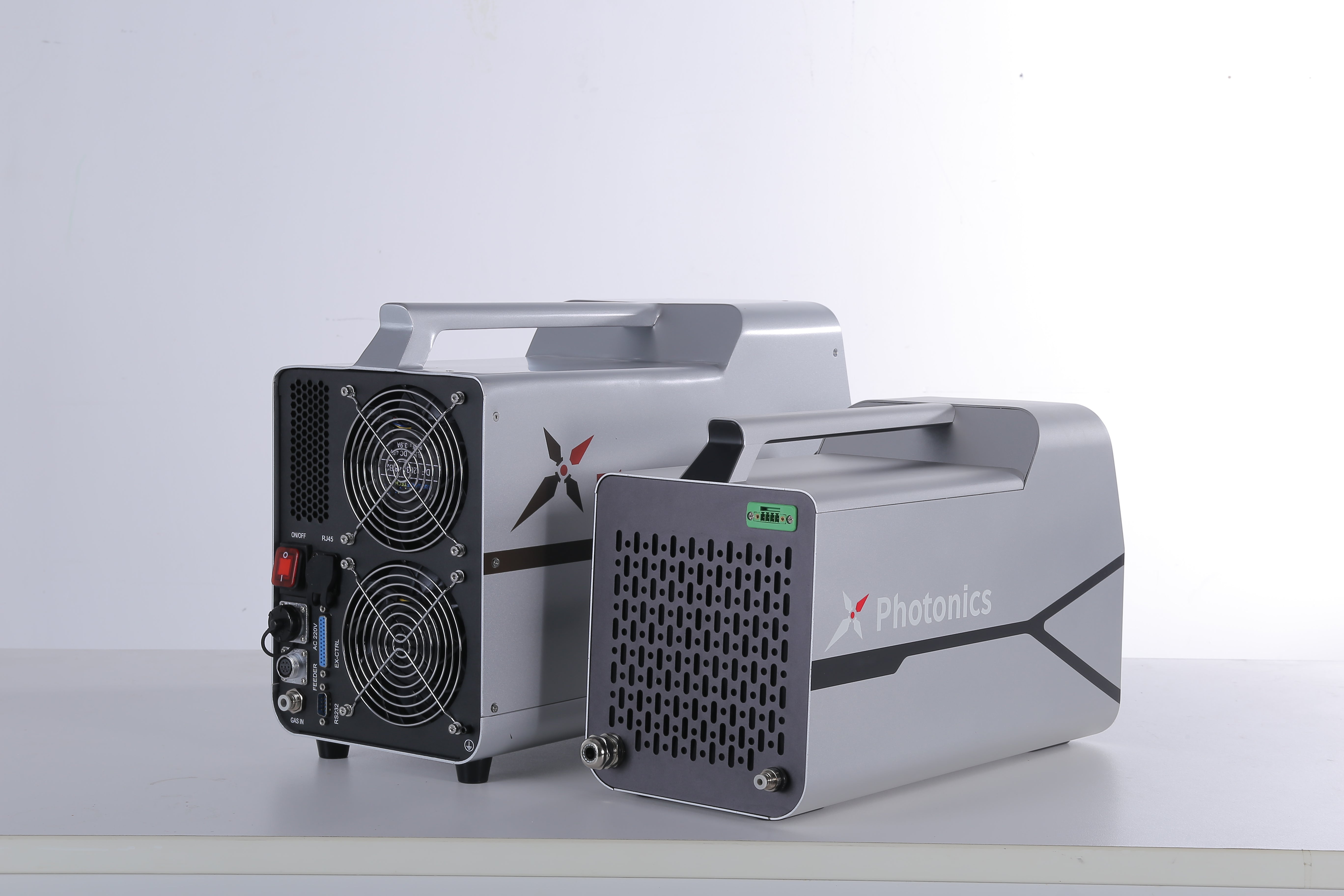

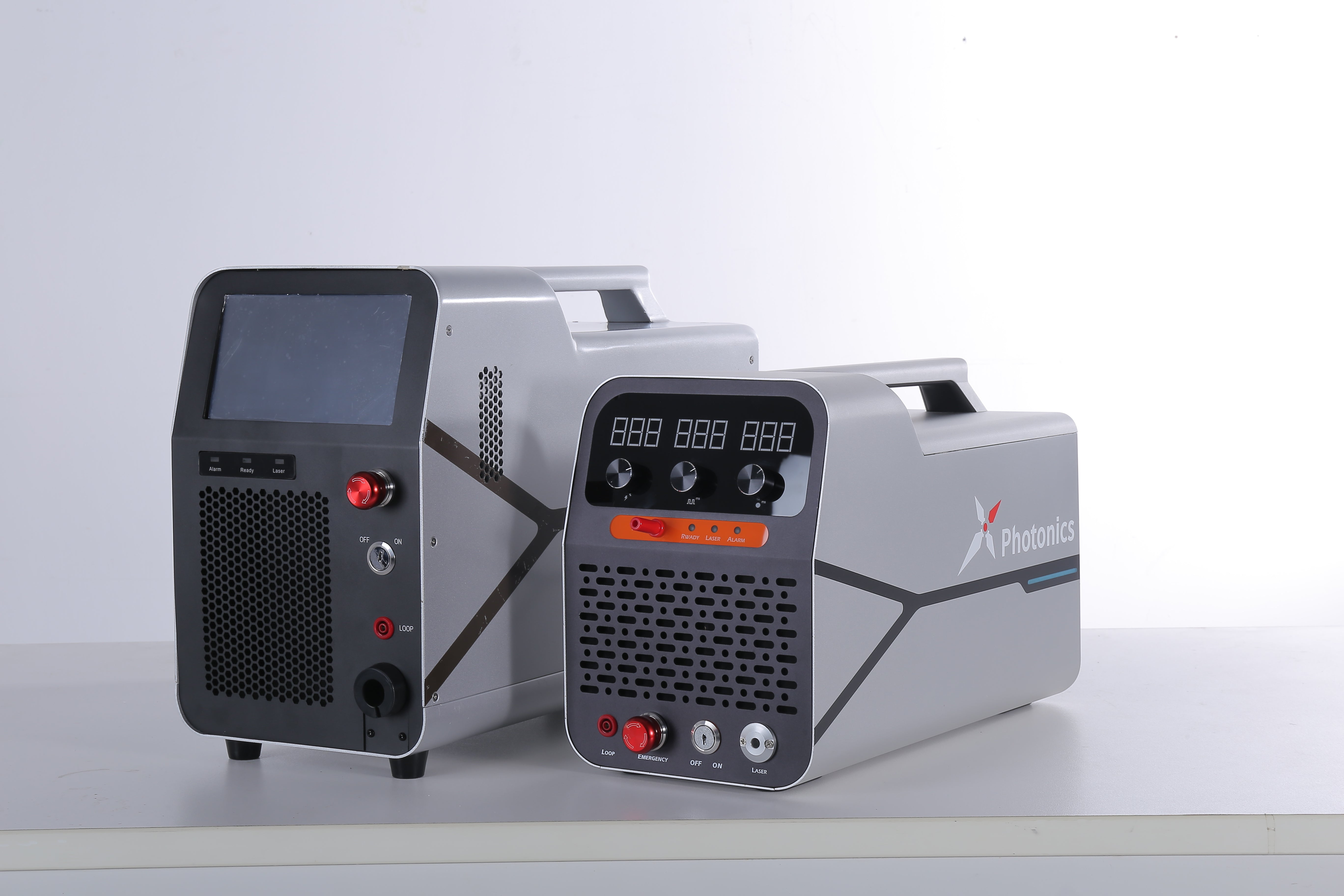

Which is Xlaser right for you?
RyanPhotonics X1 Pro
Product Model
X1 Pro
Total Power Consumption
2.5kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
470*205*335mm
Product Weight
19kg (41.89lb)
View More

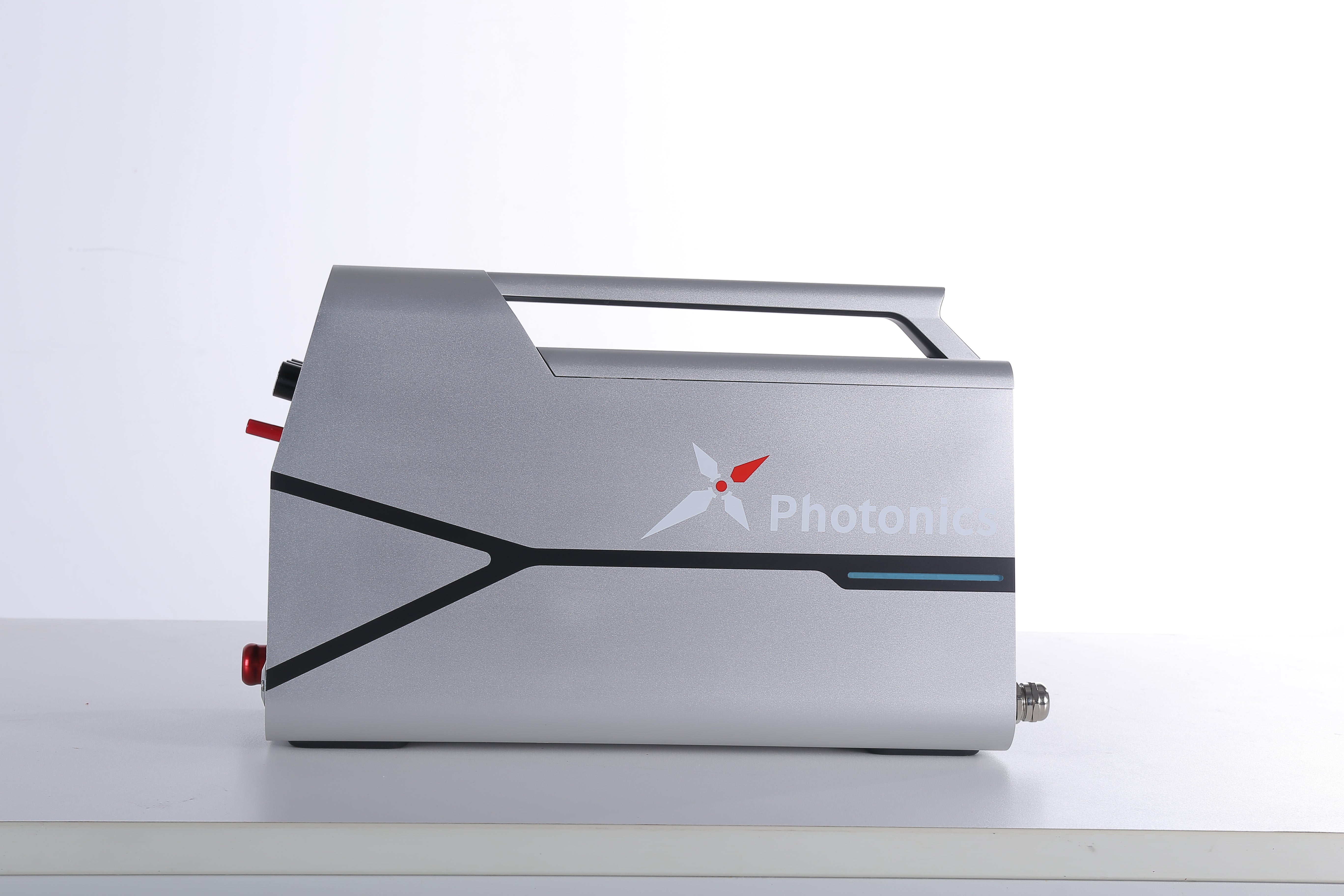

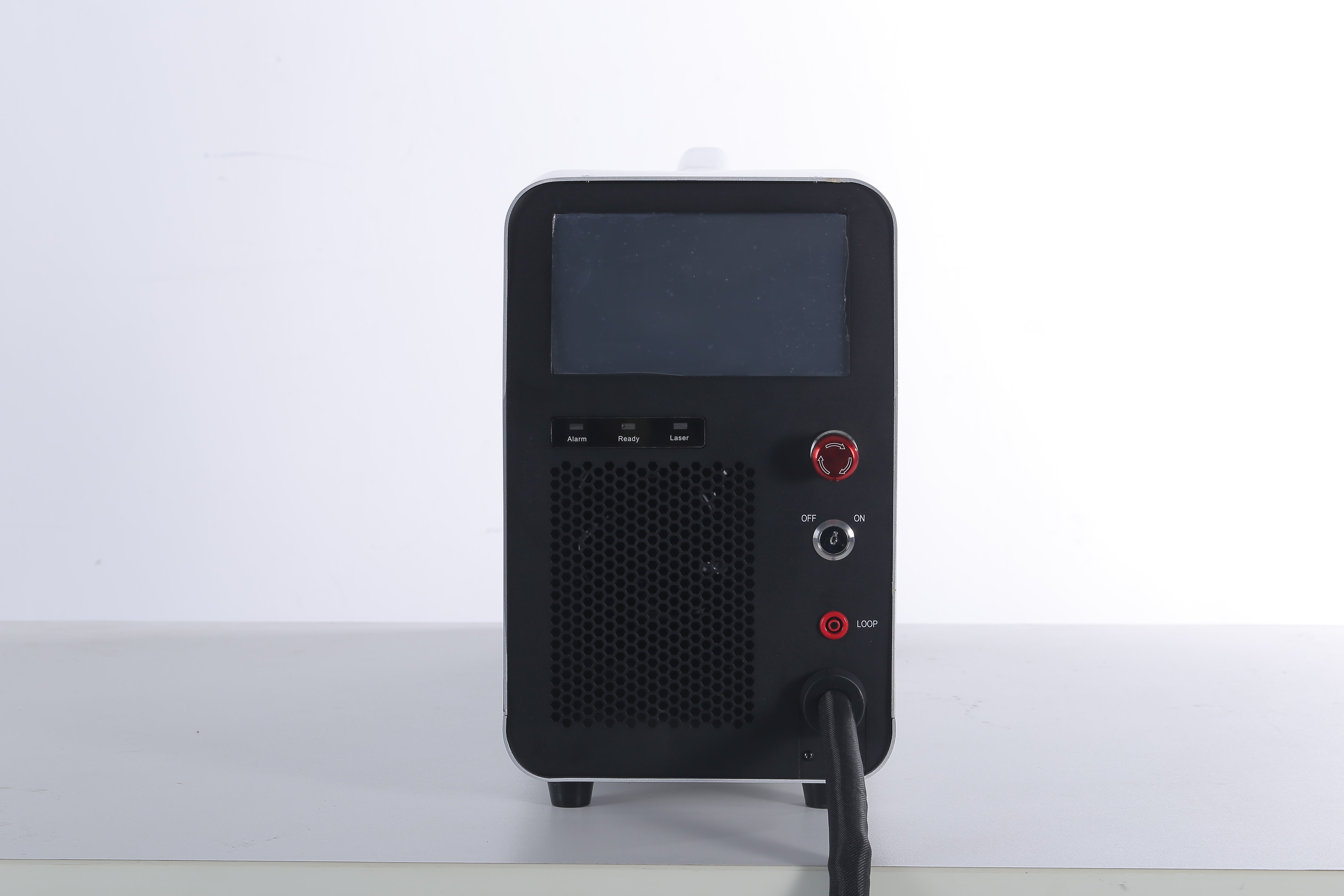

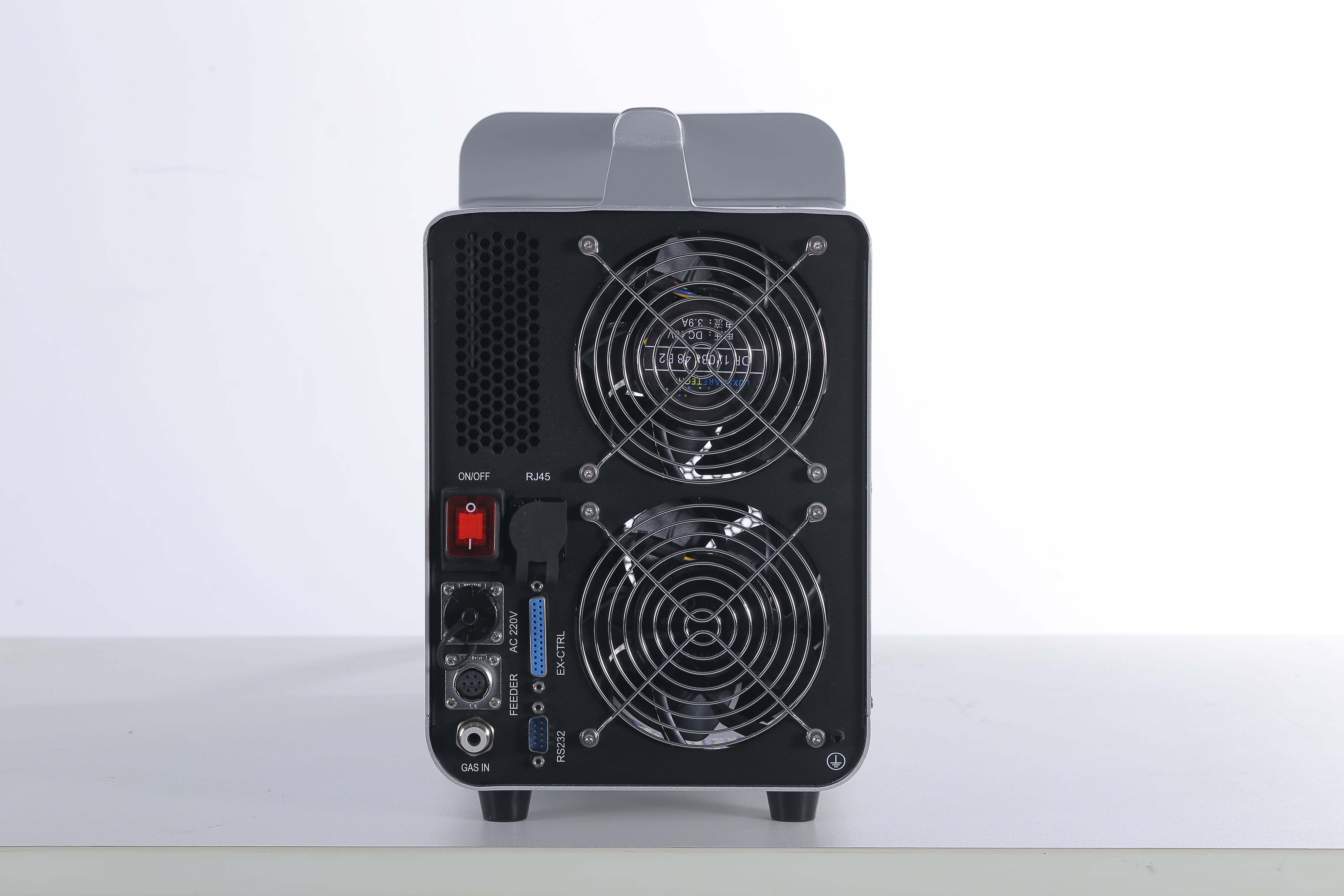

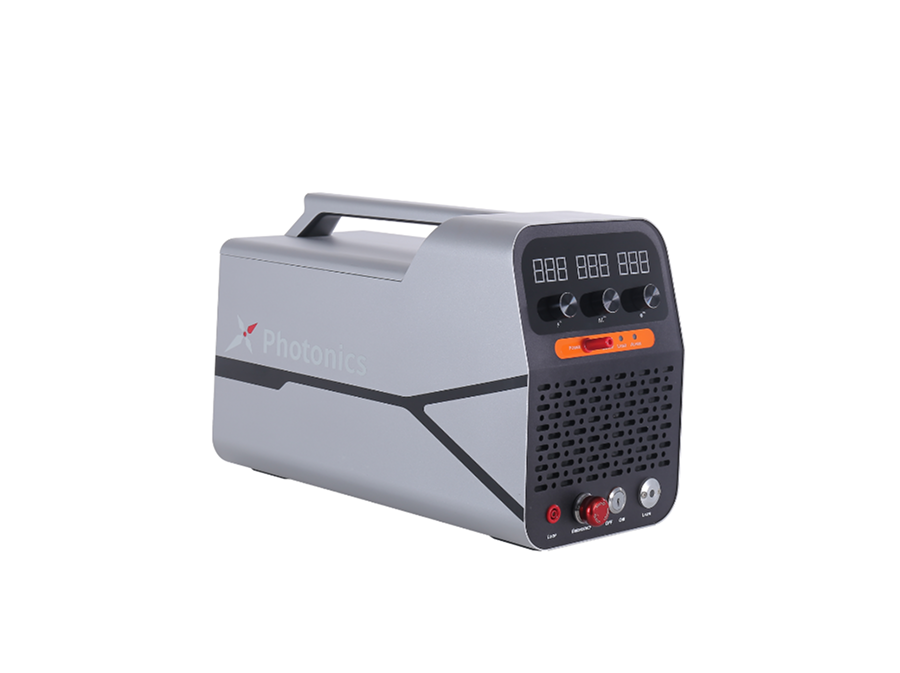

RyanPhotonics X1
Product Model
X1
Total Power Consumption
2.4kW
Input Voltage
100-240V AC,50/60Hz Supports Global Voltage Standards
Product Dimension
395*189*265mm
Product Weight
12kg (26.45lb)
View More
Video Reviews
“
Testing New SUPER LASERS... These will take over the maker industry!
Joshua De Lisle
09/05/2019
“
RyanPhotonics X1/X1 Pro: Micro Laser Welding That’s Changing the Game
Sami Luo Tech
09/05/2019
“
Desktop LASER WELDER | RyanPhotonics X1
Action BOX
09/05/2019
“
The Truth About Laser Cleaning - Pros and Cons
James Biggar
09/05/2019
FAQ
Our customer support is available Monday to Friday: 8am-8:30pm.
Average answer time: 2h
What type of laser welding machine is the X1, and what is it used for?
It uses a semiconductor laser source and is specifically designed for welding thin metal sheets.
What are the features of the X1 laser welding machine?
It is compact and lightweight, has a large spot size with uniform energy distribution, and is specifically designed for welding thin metal sheets.
How much does the X1 weigh, and how long is its armored cable?
The X1 weighs 12 kg, and its armored cable is 2 meters long.
What is the minimum thickness the X1 can weld, and what materials can it weld?
The X1 can weld materials as thin as 0.2 millimeters and is mainly used for welding stainless steel.
Does the X1 require welding wire?
The X1 does not require wire feeding

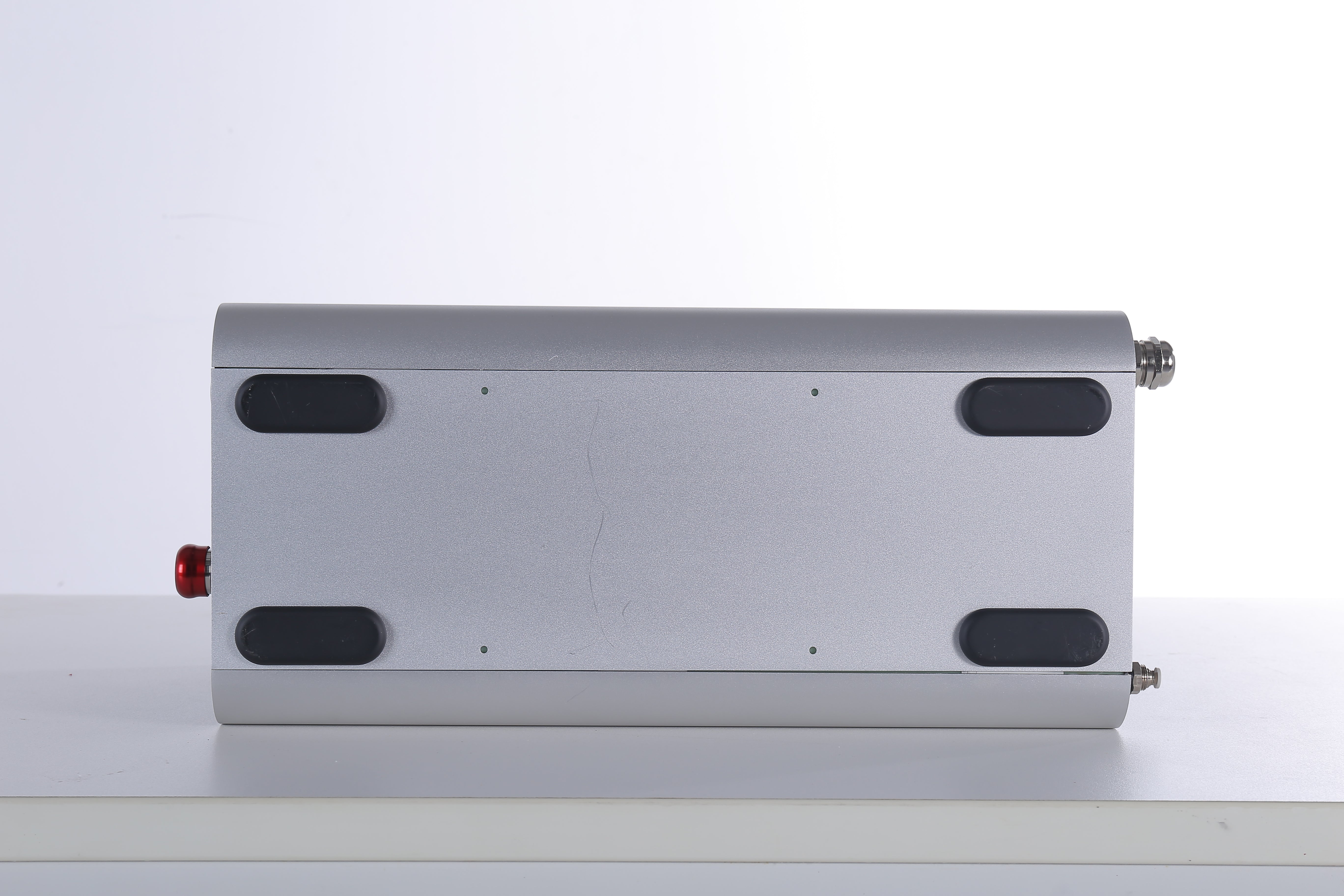

World's Smallest RyanPhotonics
Desktop Micro Semiconductor Laser Source, Ideal for Ultra-Thin Sheet Welding With Minimal Distortion, Weighs Only 12 kg
